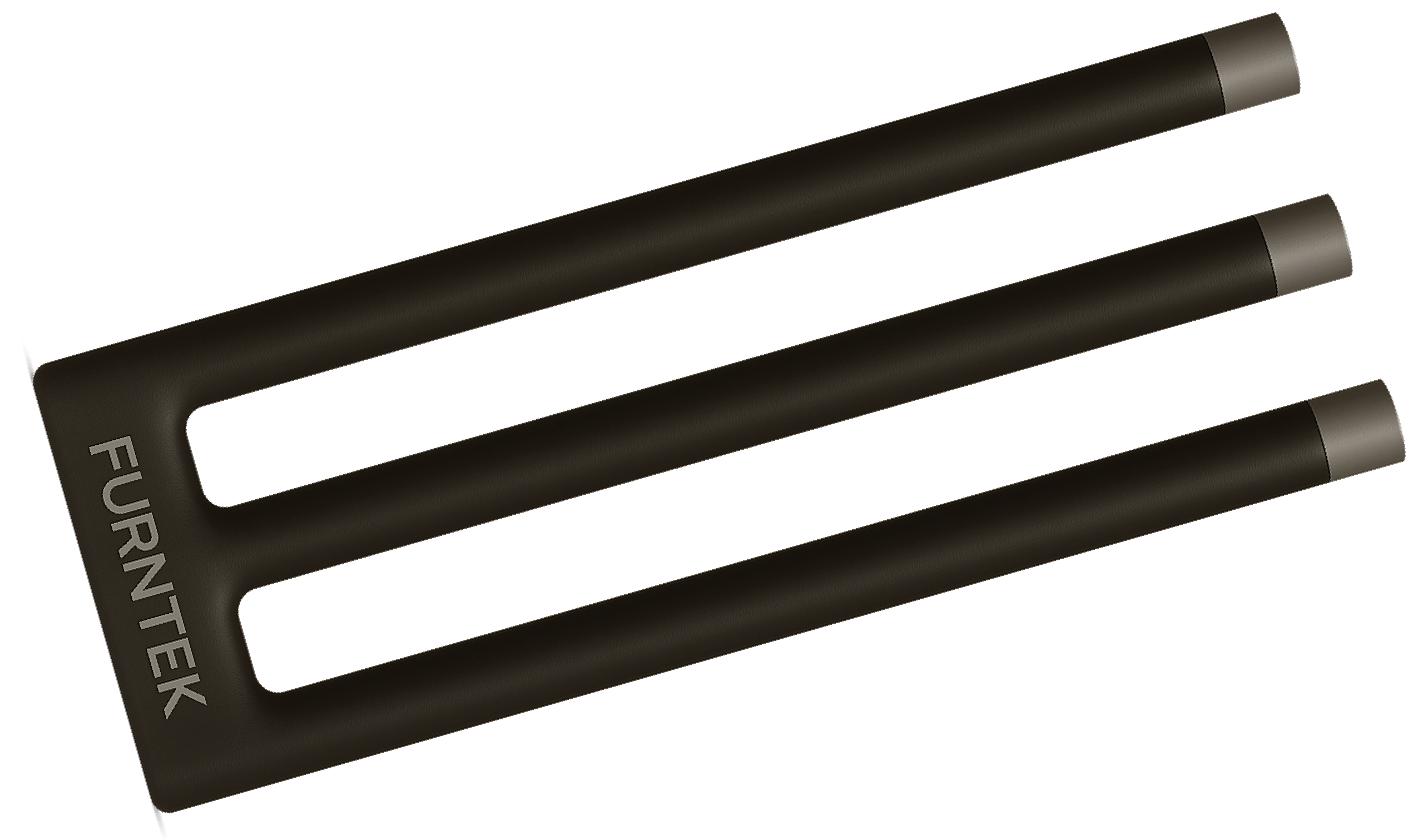

GBW Glow Bar
Heating Element Engineered for high-load applications, the GBS Spiral Glow Bar features a compact spiral design that maximizes surface area and heat transfer.
Product Specification
GBW‑Shaped SiC Element Capabilities
Diameters:
~8 mm to 65 mm (standard), custom up to ~75 mm+.
Custom Options:
Provide OD, hot and cold zone lengths, leg spacing, total length, voltage, resistance, can be manufactured to requirements.
Temperatures:
Designed for 1400 –1,500°C
Configurations:
Three-leg W-shapes with bridge; both legs equal resistance; cold ends metallized.
Mounting & supports:
Options include vertical/horizontal mounting; bridges often need support depending on orientation.
Advantages
- High thermal efficiency
- Chemically stable in oxidizing and neutral atmospheres
- Interchangeable with OEM brands
- Long lifespan when sized correctly
- Custom built for voltage, resistance, length, and shape
